Type

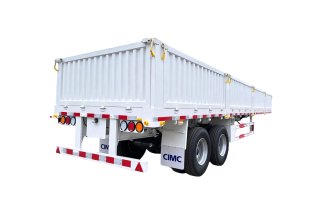

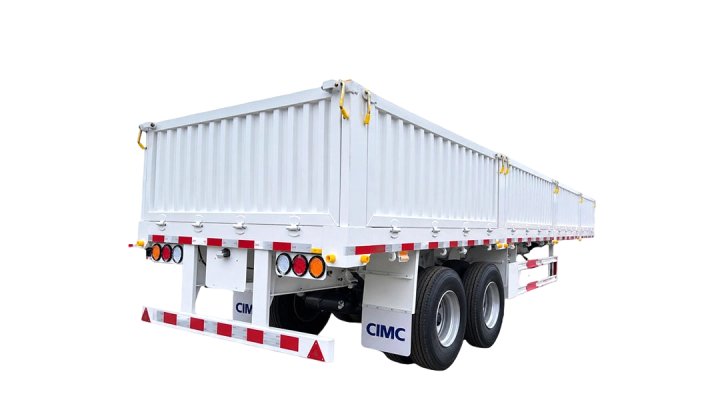

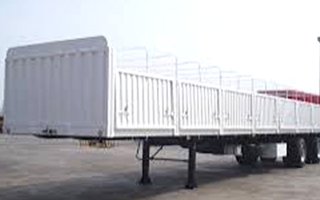

Tandem-Axle Container Drop Side Semi Trailer

Model

—

Overall Dimensions (L × W × H)

13,000 × 2,670 × H mm

Overall Height

Adjustable according to tractor specifications

Front Wall Height

1,400 mm

Drop Side Wall Height

800 mm

Container Compatibility

Containers can be transported without removing the drop side walls

Tare Weight

Approx. 8,200 kg

Max. Payload

40,000 kg

Floor

2.75 mm checker steel plate

Tires

315/80R22.5-18PR

Tire Brand

Linglong

Tire Quantity

9 pcs per trailer, including 1 spare tire

Rims

22.5 × 9.00

Rim Quantity

9 pcs per trailer, including 1 spare rim

Rim Brand

China brand

Axles

2 × CIMC 16-ton axles

King Pin

JOST 90#, bolt-on type

Suspension

Mechanical 8-leaf spring suspension, 90 × 16 mm

Landing Gear

JOST E100

Brake System

Dual-line air brake system, Type 30/30 brake chambers

Brake Valve

WABCO

ABS

Without ABS

Air Brake Pipe Connector

Red and yellow gladhand connectors
